- EXTRACTS & EXAMPLES OF OUR DELIVERY PROGRAM -

HTS 101-03: One switch - eleven housing and cooling options...
These options are availble for all current BEHLKE switch models. For further options please refer to the individual catalog pages.
Custom specific solutions on request.
 Behlke HV Switch HTS 101-03 with option LS-C Behlke HV Switch HTS 101-03 with options PIN-C and FC
Behlke HV Switch HTS 101-03 with option CCS
1) HTS 101-03 with shielded control input (LS-C) 2) HTS 101-03 in flat case (FC) with pins  (PIN-C) 3) HTS 101-03 with ceramic cooling surface (CCS)
Behlke HV Switch HTS 101-03 with option CF and LS-C Behlke HV Switch HTS 101-03 with option CF-GRA and LS-C Behlke HV Switch HTS 101-03 with option CF-CER and LS-C
4) HTS 101-03 with nickel plated copper cooling fins (CF) 5) HTS 101-03 with graphite cooling fins (CF-GRA) 6) HTS 101-03 with ceramic cooling fins (CF-CER)
Behlke HV Switch HTS 101-03 with option GCF and LS-C Behlke HV Switch HTS 101-03 with option ILC Behlke HV Switch HTS 101-03 with option DLC
7) HTS 101-03 with potential-free Cu cooling flange (GCF) 8) HTS 101-03 for indirect liquid cooling with water (ILC) 9) HTS 101-03 for direct liquid cooling with Galden (DLC)
Behlke HV Switch HTS 101-03 with option PC and LS-C Behlke HV Switch HTS 101-03 with option SEP-C Behlke Compact HV Switch
10) HTS 101-03 in pulser configuration (PC) 11) HTS 101-03 with separated control unit (SEP-C) 12) The HTS compact series for lower Pd(max) HTS 121-01-C)

1)    HTS 101-03 with shielded input (opt. LS-C). 1m linkage cable & 2nd socket is included. High quality self-latching system (LEMO). Housing: Flame retardent and heat resistant hard plastics.
2)

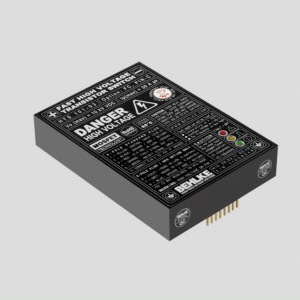

   HTS 101-03 in flat case (option FC) with soldering pins for control connection (option PIN-C). Dimension 89x64x17 mm. Flame retardent and heat resistant housing mantle according to UL94-V0.

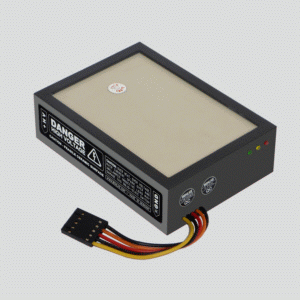

3)    HTS 101-03 with ceramic cooling surface (option CCS). The top side of the switching module is made of ceramics to reduce thermal resistance to ambient. Forced convection recommended.

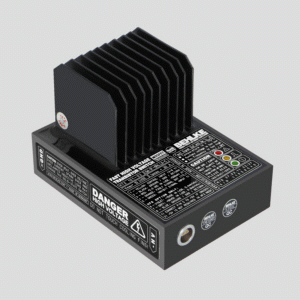

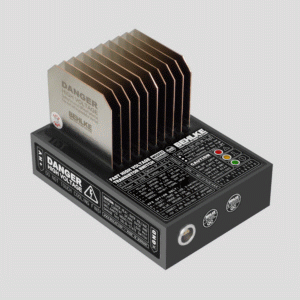

4)    HTS 101-03 with nickel plated copper cooling fins (option CF). Available in various size, form and thickness (-X1, -X2, -XS, -LC, -1). Switches with option CF can also be immersed in oil tanks.
5)    HTS 101-03 with graphite cooling fins (option CF-GRA). Compared to Cu, graphite has a similar cooling performance but only 20% of the weight of Cu. Please note the reduced heat capacity.

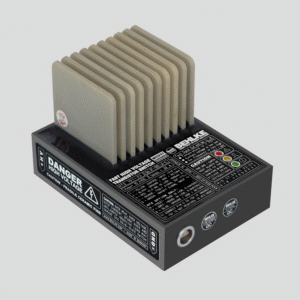

6)    HTS 101-03 with option CF-CER (ceramic cooling fins). Ceramic cooling fins are potential free and can reduce the EMI in noise critical applications. We suggest forced convection.

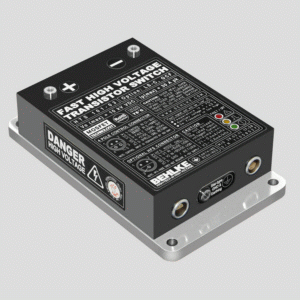

7)    HTS 101-03 with potential-free Cu cooling flange (opt.GCF) and high frequency switching option (opt. HFS). The flange can be mounted on heat sinks. For medium f(max) and medium Pd(max).

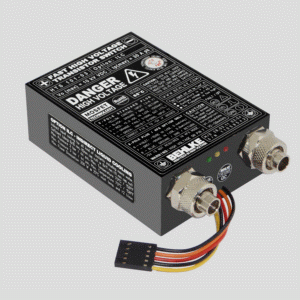

8)    HTS 101-03 with indirect liquid cooling (option ILC). For mains water and other conductive coolants. The internal heat exchanger is made of ceramics. For medium f(max) and medium Pd(max).

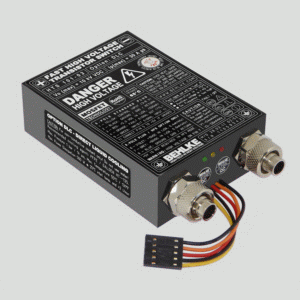

9)    HTS 101-03 with direct liquid cooling (option DLC). For non-conductive fluids (e.g. GALDEN HT-135 or low viscose oil). Best for high frequency applications with very high power dissipation.
10)  HTS 101-03 in pulser configuration (option PC) with HV pigtails (option PT-HV), shielded input (LS-C ) and plastic flange housing (option FH). HV sockets and additional part components can be
       integrated to make a customized OEM pulser. The option PC can also be combined with the above cooling options. Please consult factory for more details.

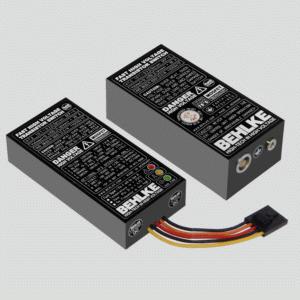

11)  HTS 101-03 with separated control control unit (option SEP-C). To place the control electronics up to 1m away from the power electronics. Plug connection with self-latching mini plug.
12)  If it must be really small: The new HTS compact series. The picture shows the HTS 121-01-C (12 kV/15A) with option FC and PIN-C (flat case + pins for  the input). Dimension 79x38x17 mm.
      Switches of the compact series can be made for voltages up to 24kV in the DC and 12kV in the AC configuration. Push-pull switches are available up to 12kV and push-pull AC switches up to 6 kV.
      Depending on voltage, the current rating will be from 15 A to 260 A (as at March 2011).
.
 Product Group A - Fast thyristor switches for discharge purposes MORE
1) 2) 3)
Behlke Fast High Voltage Thyristor Switch Behlke Fast High Voltage Thyristor Switch Behlke Fast High Voltage Thyristor Switch
4) 5) 6)
Behlke Fast High Voltage Thyristor Switch Behlke Fast High Voltage Thyristor Switch Behlke Fast High Voltage Thyristor Switch
7) 8) 9)
Behlke Fast High Voltage Thyristor Switch Behlke Fast High Voltage Thyristor Switch
10)   NEW 11)   NEW 12)  NEW DLC Liquid Cooling
Behlke Fast High Voltage Thyristor Switch Behlke Fast High Voltage Thyristor Switch Behlke Fast High Voltage Thyristor Switch
13)  NEW DLC Liquid Cooling




Note: Unlike classical disc thyristor switches with very limited dv/dt and di/dt capabilities, the fast Behlke thyristor switching modules are made of a very large number of smaller thyristor dies (type depending up to 1000 single thyristors), connected in parallel and in series, so that the extreme dv/dt and di/dt is efficiently splitted to uncritical values for the the single thyristors. Every single thyristor is fired by its own highly synchronized and isolated gate driver. This makes a very short gate wiring possible and avoids so the dangerous hot spots known from classical thyristor switch designs. Behlke thyristor switches can safely be operated at the highest physically possible di/dt and dv/dt rates and at the highest possible peak currents without any measurable descent of the life expectancy. Behlke thyristor switches are truly gate controlled and do not draw firing energy from the high voltage load circuit. This allows a safe switching from almost 0 V (sufficient snap-in current provided) to the maximum operating voltage without any restriction. The switches are isolated for at least 150% of the maximum operating voltage, so that high-side switching applications can be realized without big effort. In order to save costs and built volume, especially in low side switch applications (e.g. crowbar circuits), all Behlke thyristor switches can also be made with an optionally available asymetrical isolation, e.g. 200 kV for the plus pole and 30 kV for the minus pole. Special isolation voltage requirements can be fulfilled by customized isolation voltage ratings for every thyristor switch model regardless to its operating voltage. The "regular" isolation voltage options range from 40 kV to 200 kV (option ISO-40, ISO-80, ISO-120 and ISO-200). An individual "medical certification" according to the European safety standards is available on request. In order to connect several Behlke thyristor switches in parallel, they are equipped with a synchronization I/O. This synchronization I/O ensures the synchron firing and inhibits the trigger input of the other switching modules, if one switch is off due to a fault condition, e.g. due to over-temperature. All Behlke thyristor switches are optionally available with a grounded cooling flange (option GCF), with nickel plated copper cooling fins (option CF), with graphite cooling fins (option CF-GRA), with ceramic cooling fins (option CF-CER), with water cooling (option ILC), direct liquid cooling for non-conductive coolants (option DLC) or with ceramic cooling surface (option CSS).

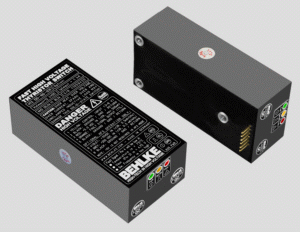

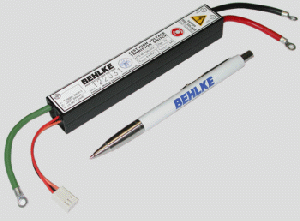

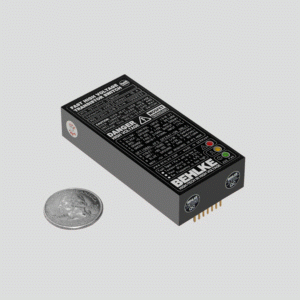

1)    HTS 120-100-SCR, fast thyristor HV switch for a di/dt >2kA/Ás. Shown in cost efficient plastic housing with option FC (flat case). 12 kVDC, 1kA pk, tr < 100...500 ns. Dimension 79x38x17 mm.

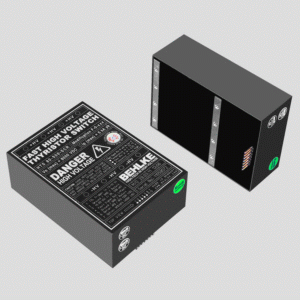

2)    HTS 80-500-SCR
, fast thyristor HV switch for a di/dt >10kA/Ás. Shown in cost efficient plastic housing with standard high current terminals. 8 kVDC, 5 kA pk, tr < 100...500 ns. 89x64x32 mm.
3)

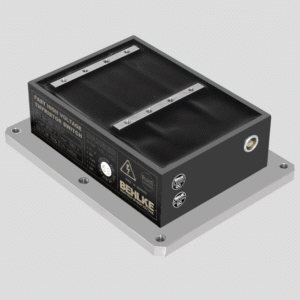

    HTS 80-500-SCR, fast thyristor HV switch for a di/dt >10kA/Ás. With optional cooling flange, potential free (option GCF). 8 kVDC, 5 kA pk, tr < 100...500 ns. Dimensions 132x100x40 mm.

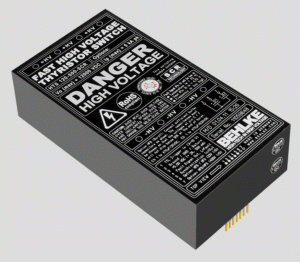

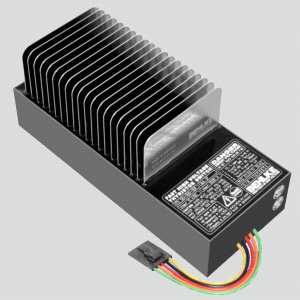

4)    HTS 120-500-SCR
, fast thyristor HV switch for a di/dt >10kA/Ás. Shown in cost efficient plastic housing. Standard high current terminals. 12 kVDC, 5kA pk, tr < 100...500 ns. 122x64x31 mm.
5)    HTS 120-500-SCR, fast thyristor HV switch for a di/dt >10kA/Ás. With optional copper cooling fins (option CF). Standard high current terminals. 12 kVDC, 5kA pk, tr < 100...500 ns. 122x64x66 mm.

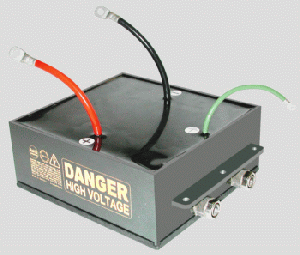

6)    HTS 240-1200-SCR, fast thyristor HV switch for a di/dt >24kA/Ás. With optional ceramic cooling surface (option CCS). 24 kVDC, 12 kA pk, tr < 100...500 ns

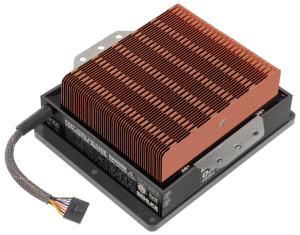

7)    HTS 240-1200-SCR,
fast thyristor HV switch for a di/dt >24kA/Ás. With optional Cu cooling fins (double fins, option CF-D). 24 kVDC, 12 kA pk, tr < 100...500 ns

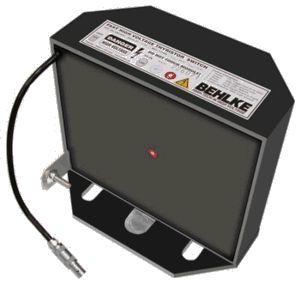

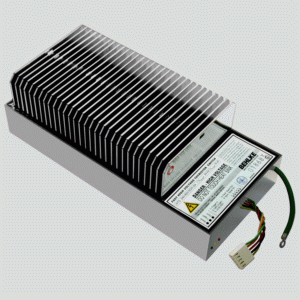

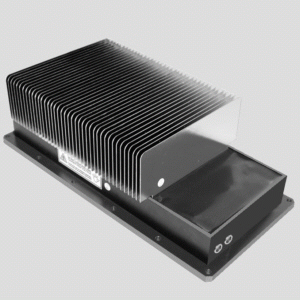

8)    HTS 240-800-SCR
, fast thyristor HV switch for a di/dt >16kA/Ás. With optional Cu cooling fins (option CF-1). 24.000 VDC, 8 kA pk, tr < 100...500 ns
9)    HTS 240-300-SCR, fast thyristor HV switch for a di/dt >6kA/Ás. With optional Cu cooling fins, enlarged (option CF-X3) and plastic flange housing (option FH). 24 kVDC, 3 kA pk, tr < 100...500 ns

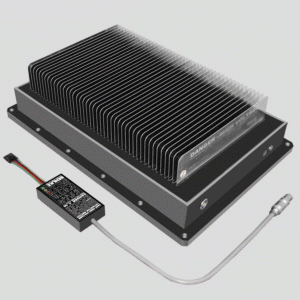

10)  HTS 440-1200-SCR, fast thyristor HV switch for a di/dt >24kA/Ás. With optional Cu cooling fins (option CF) and plastic flange housing (option FH). 44 kVDC, 12 kA pk, tr < 100...500 ns

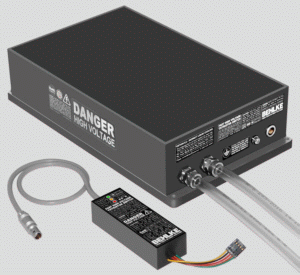

11)  HTS 500-1200-SCR, fast thyristor HV switch for a di/dt >24kA/Ás. With optional water cooling (option ILC). 50 kVDC, 12 kA pk, tr < 100...500 ns

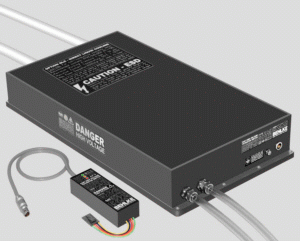

12)  HTS 1500-1000-SCR, fast thyristor HV switch for a di/dt >20kA/Ás. With optional liquid cooling for non-conductive coolants (option DLC). 150 kVDC, 10 kA pk, tr < 150...500 ns.

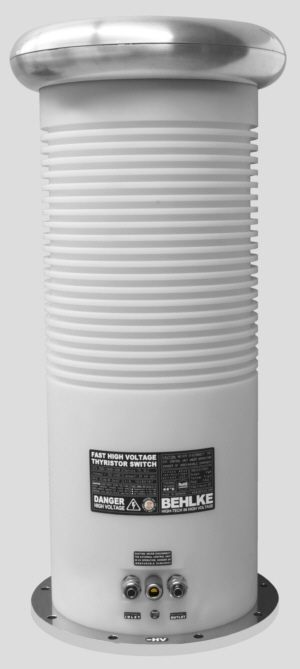

13)  HTS 1200-2400-SCR, fast thyristor HV switch for a di/dt >40kA/Ás. With optional liquid cooling. Asymetrical isolation (plus pole 200 kV / minus pole 30 kV). 120 kVDC, 24 kA pk, tr < 200...600 ns.



 Product Group B1 - MOSFET switches with fixed on-time for general purposes MORE
1) 2) 3)
Behlke Fast High Voltage MOSFET Switch Behlke Fast High Voltage MOSFET Switch Behlke Fast High Voltage MOSFET Switch

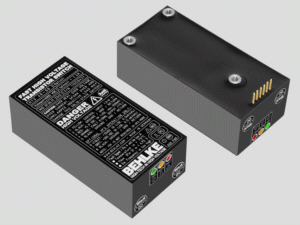

1)  HTS 40-06, very fast MOSFET switch in standard plastic housing. Fixed on-time, ton=100ns (50 ns - 100 Ás optionally available) 4 kV, 60 A pk, rise time < 3 ns.

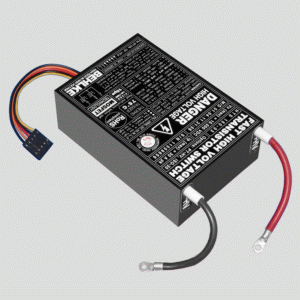

2)  HTS 150, MOSFET switch. Fixed on-time, ton=150ns (100 ns - 100 Ás optionally available). With HV pigtails (PT-HV) and high isolation voltage (ISO-40). 15 kV, 30 A, tr <10ns.

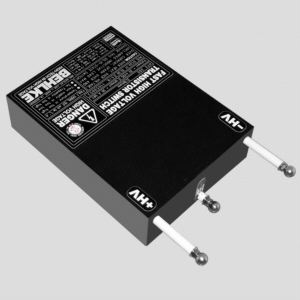

3)  HTS 300, MOSFET switch. Fixed on-time, ton=200ns (100 ns - 100 Ás optionally available).Shown in standard plastic housing. 30 kV, 30 A, rise time < 10ns.

 Product Group B2 - MOSFET, fixed on-time, high di/dt and low impedance MORE
1) 2) 3)
Behlke Fast High Voltage MOSFET Switch Behlke Fast High Voltage MOSFET Switch Behlke Fast High Voltage MOSFET Switch
1)  HTS 60-16, fast discharge switch with low stray inductance. Fixed on-time, ton = 150ns. 6 kV, 160 A, tr <4ns @Ip(max). Pin sockets for PCB's are included in delivery.

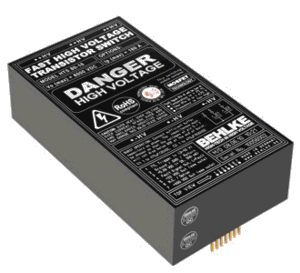

2)  HTS 80-16, fast discharge switch with low stray inductance. Fixed on-time, ton = 150ns. 8 kV, 160 A, tr <5ns @Ip(max). Pin sockets for PCB's are included in delivery.

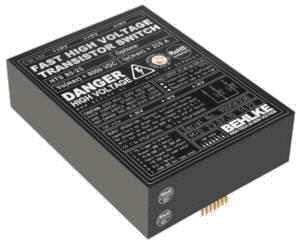

3)  HTS 80-26, fast discharge switch with low stray inductance. Fixed on-time, ton = 180ns. 8 kV, 260 A, tr <5ns @Ip(max). Pin sockets for PCB's are included in delivery.

 Product Group B3 - MOSFET, fixed on-time, high di/dt and ultrafast MORE
1) 2) 3)
Behlke Ultrafast High Voltage MOSFET Switch Behlke Ultrafast High Voltage MOSFET Switch Behlke Ultrafast High Voltage MOSFET Switch

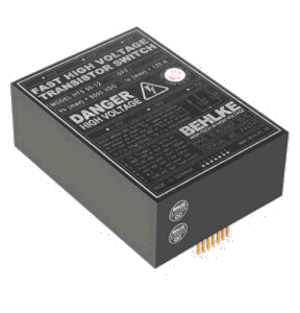

1)  HTS 50-12-UF, ultrafast discharge switch with low inductance. Fixed on-time, ton=200ns (10ns -1Ás optionally). 5kV, 120A, tr <2ns @Ip(max). Pin sockets for PCB's are included in delivery.
2)  HTS 80-12-UF, ultrafast discharge switch with low inductance. Fixed on-time, ton=200ns (10ns -1Ás optionally). 8kV, 120A, tr <3ns @Ip(max). Pin sockets for PCB's are included in delivery.
3)  HTS 80-20-UF, ultrafast discharge switch with low inductance. Fixed on-time, ton=200ns (20ns -1Ás optionally). 8kV, 200A, tr <4ns @Ip(max). Pin sockets for PCB's are included in delivery.

 Product Group B4- Trench FET, fixed on-time, high current, low on-resistance MORE
1)                               N E W 2)                        N E W 3)                        N E W
Behlke Fast High Voltage MOSFET Switch Behlke Fast High Voltage MOSFET Switch  Behlke Fast High Voltage MOSFET Switch

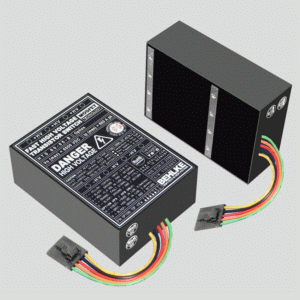

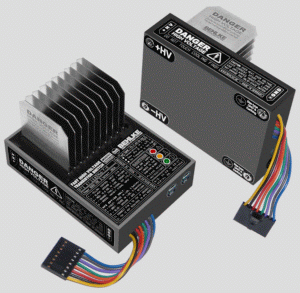

1)  HTS 60-65-B, latest Trench FET technology for very low on-resistance and high current. Fixed on-time, ton = 150ns. 6.5 kV, 650 A pk. Rise time < 10 ns @Ip(max)

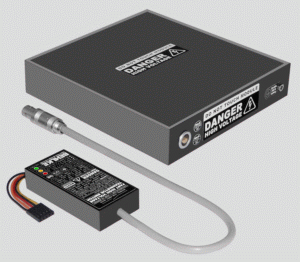

2)  HTS 170-160-B, latest Trench FET technology for very low on-resistance and high current. Fixed on-time, ton = 200ns. 17 kV, 1600 A pk. Rise time < 15 ns @Ip(max). Separate control unit.

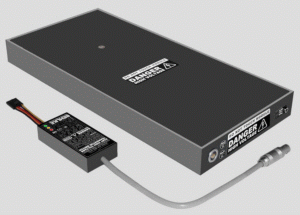

3)  HTS 330-160-B, latest Trench FET technology for very low on-resistance and high current. Fixed on-time, ton = 250ns. 33 kV, 1600 A pk. Rise time < 18 ns @Ip(max). Separate control unit.

 Product Group C1 - MOSFET switches, variable on-time, for general purposes   MORE
1)                        N E W 2)                        N E W 3)
Behlke Fast High Voltage MOSFET Switch Behlke Fast High Voltage MOSFET Switch Behlke Fast High Voltage MOSFET Switch
4)

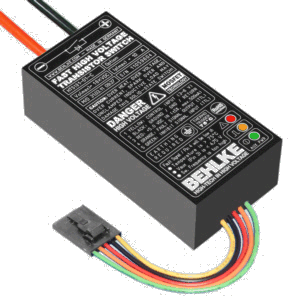

1)  HTS 181-01-C, MOSFET switch, compact series. Variable on-time from 50 ns to infinite. 18 kV, 12 A, rise time < 15 ns. Dimension 79 x 38 x 25 mm. Opt. PT-HV (HV pigtails) recommended.

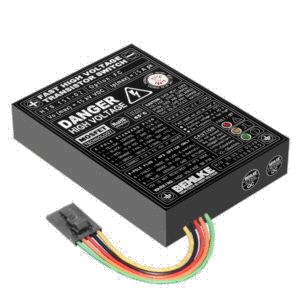

2)  HTS 151-02, MOSFET switch, with option FC (flat case) with standard connectors. Variable on-time from 50 ns to infinite. 15 kVDC, 25 A pk, rise time < 8 ns.On-resistance < 30 Ohm.

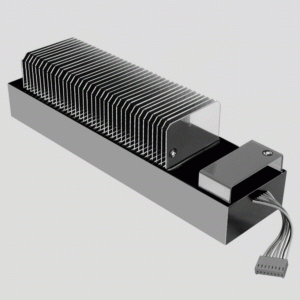

3)  HTS 331-06, universal MOSFET switch with option CF (cooling fins), C-DR (driver cooling) and HFS (high frequency switching). 33 kVDC,  60 A. On-resistance < 33 Ohm.

 Product Group C2 - MOSFET switches with variable on-time and high di/dt MORE
1) 2) 3)
Behlke Fast High Voltage MOSFET Switch Behlke Fast High Voltage MOSFET Switch Behlke Fast High Voltage MOSFET Switch

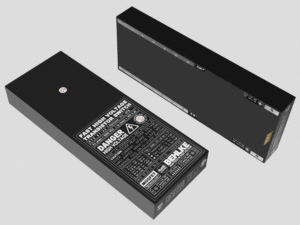

1)  HTS 61-40, MOSFET switch with high di/dt. Variable on-time from 300 ns to infinite. 6 kVDC, 400 A pk. Rise time < 10 ns @Ip(max)

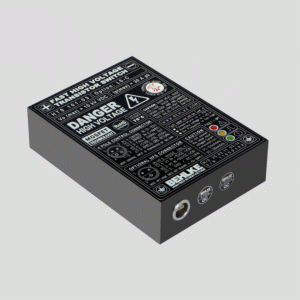

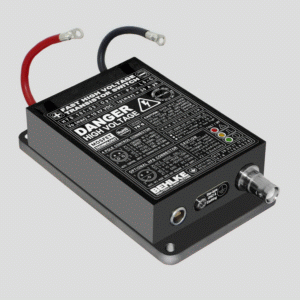

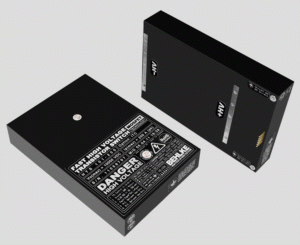

2)  HTS 101-20, MOSFET switch with high di/dt. Variable on-time from 300 ns to infinite. 10 kVDC, 200 A pk. Rise time < 12 ns @Ip(max)

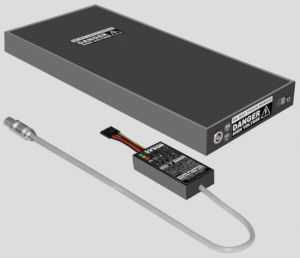

3)  HTS 311-130-B, MOSFET switch with high di/dt in trench FET technology. Variable on-time 300 ns - ∞. 31 kVDC, 1300 A pk. Rise time < 20 ns @Ip(max). Separate control unit.

 Product Group C3 - MOSFET, variable on-time, low coupling capacitance MORE
1)
Behlke Fast High Voltage MOSFET Switch
2)   3)
Behlke Fast High Voltage MOSFET Switch   Behlke Fast High Voltage MOSFET Switch

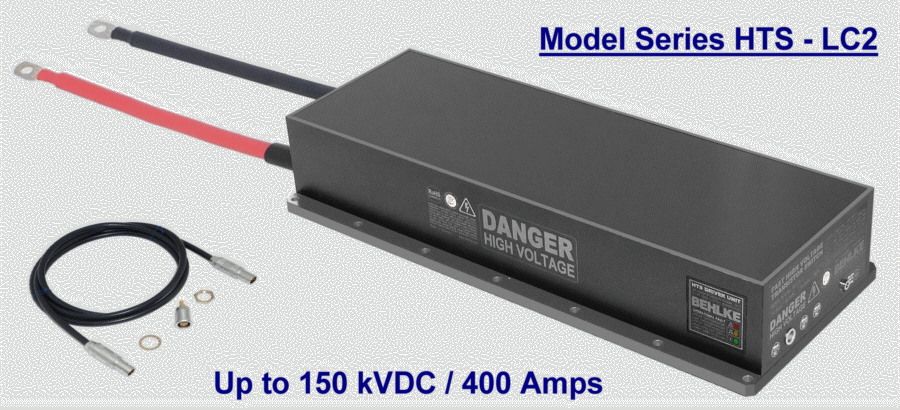

1)  HTS 901-10-LC2, low capacitance MOSFET switch in HV transient proof LC2 technology. The switch is designed to meet very harsh industrial requirements. Isolation voltage > 150 kV
     (optionally up to 300 kV). With built-in control unit (exchangeable). 90 kVDC, 100 A. On-resistance < 40 Ohm. Turn-on rise time <50 ns.

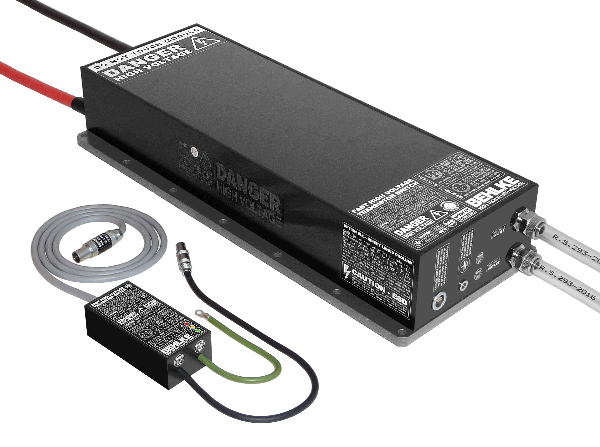

2)  HTS 901-10-LC2, as above but with option SEP-C (separate control unit) and option DLC (direct liquid cooling).

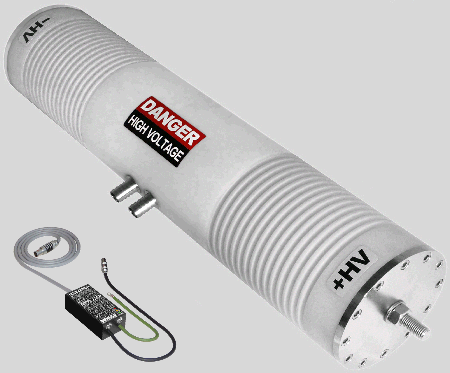

3)  HTS 1001-20-LC2
, High Power MOSFET switch with option TH (tubular housing) and option DLC (direct liquid cooling). 100 kVDC, 200 A pk., rise time < 50 ns, max. power dissipation 30 kW

 Product Group C4 - Trench FET, variable on-time, high current, low resistance MORE
1)                        N E W 2) 3)
Behlke Fast High Voltage MOSFET Switch Behlke Fast High Voltage MOSFET Switch Behlke Fast High Voltage MOSFET Switch

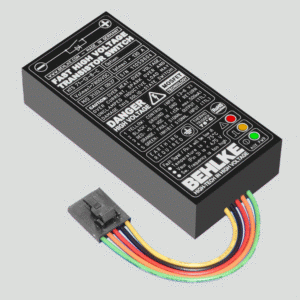

1)  HTS 71-13-B-C, Compact Series. Latest TRENCH FET technology for low on resistance. 7.8 kVDC, 130 A pk, < 1 Ohm, tr < 10 ns. Dimension 79 x 38 x 17 mm
2)  HTS 61-23-B, Latest Trench FET for low on resistance and high peak current. With optional copper cooling fins (option CF). 6.5 kVDC, 230 A pk, Ron < 0.4 Ohm, tr < 15ns

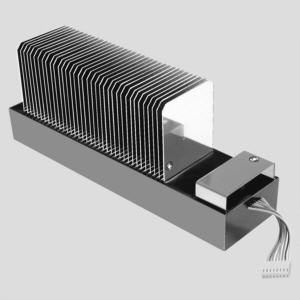

3)  HTS 231-52-B, Latest Trench FET technology for low on resistance and high peak current. 23 kV, 520 A, < 0.7 Ohm, tr < 20 ns. With option CF-X2 (cooling fins X2) and C-DR (driver cooling)

 Product Group C5 - MOSFET, variable on-time, bipolar, for AC and DC voltage MORE
1) NEW 2) NEW 3) NEW
Behlke Fast High Voltage AC MOSFET Switch Behlke Fast High Voltage AC MOSFET Switch Behlke Fast High Voltage AC MOSFET Switch
4

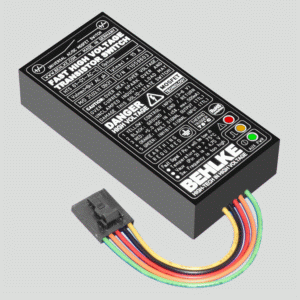

1)  HTS 61-01-AC-C, MOSFET switch for AC, DC and bipolar DC voltage. Compact series. Dimension  79 x 38 x 17 mm. 6 kVAC (pk) / 15 A (pk).

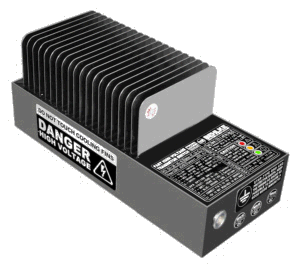

2)  HTS 131-26-AC-B, Trench FET switch for AC, DC and bipolar DC voltage. With optional copper cooling fins (option CF) and shielded input (option LS-C) . 13 kVAC (pk) / 260 A (pk).

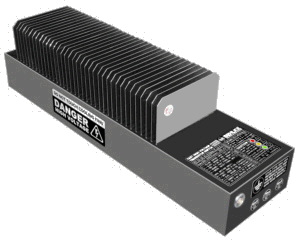

3)  HTS 231-26-AC-B, Trench FET switch for AC, DC and bipolar DC voltage.With optional copper cooling fins (option CF) and shielded input (option LS-C) . 23 kVAC (pk) / 260 A (pk).

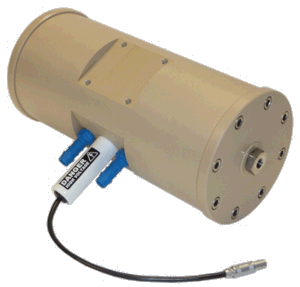

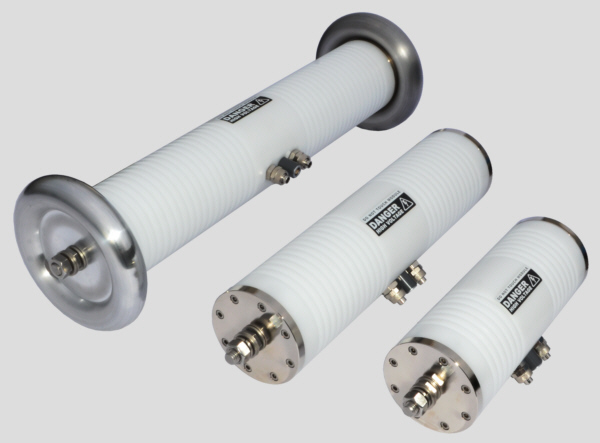

4)  Various MOSFET AC Switches from 30 to 70 kV / 100 A with tubular housing (option TH) and direct liquid cooling (option DLC).

 Product Group C6 - IGBT switches with variable on-time, high current MORE
1) 2) 3)
Behlke Fast High Voltage IGBT Switch Behlke Fast High Voltage IGBT Switch Behlke Fast High Voltage IGBT Switch

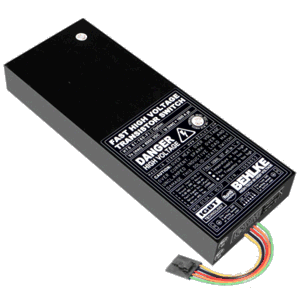

1) HTS 61-160-FI, fast IGBT switch. Variable on-time 200ns to infinite. With pigtails for control connection (option PT-C). 6 kV, 1600 A. Turn-on rise time <90 ns @Ip(max). Turn-off rise time <0.8 Ás.

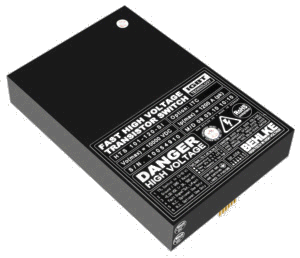

2) HTS 101-120-SI, standard IGBT switch. Variable on-time 1Ás to infinite. 10 kV, 1200 A pk. Turn-on rise time < 150 ns @ Ip(max). Turn-off rise time < 5 Ás.
3)

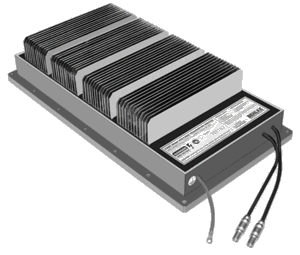

 HTS 241-240-SI, standard IGBT switch. Variable on-time 200 ns to infinite. With optional cooling fin (option CF) and flange housing (option FH). 24 kV, 2400 A pk. Rise time < 150 ns @ Ip(max).


 Product Group C7- MCT switches with variable on-time, high current MORE
1) 2)  3)
Behlke Fast High Voltage MCT Switch Behlke Fast High Voltage MCT Switch Behlke Fast High Voltage MCT Switch

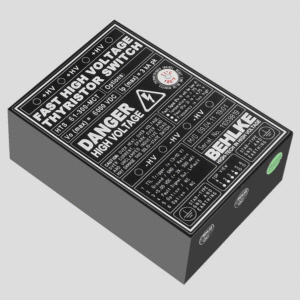

1)  HTS 61-300-MCT, Thyristor switch with variable on-time. 6 kVDC, turn-on current 3 kA, turn-off current 100 A. Turn-on rise time 200 ns, turn-off rise time 1.5 Ás.

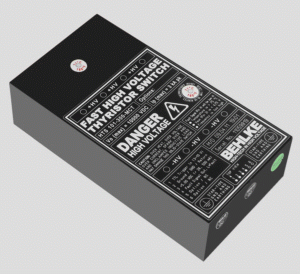

2)  HTS 101-300-MCT, Thyristor switch with variable on-time. 10 kVDC, turn-on current 3 kA, turn-off current 100 A. Turn-on rise time 200 ns, turn-off rise time 1.5 Ás.

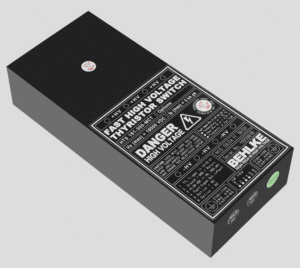

3)  HTS 181-300-MCT, Thyristor switch with variable on-time. 18 kVDC, turn-on current 3 kA, turn-off current 100 A. Turn-on rise time 200 ns, turn-off rise time 1.5 Ás.

 Product Group C8 - MOSFET switches in push-pull configuration (half bridge) MORE
1)                        N E W 2) 3)
 Behlke Fast High Voltage Push-Pull Switch Behlke Fast High Voltage Push-Pull Switch Behlke Fast High Voltage Push-Pull Switch
4)                        N E W
 Behlke Fast High Voltage Push-Pull Switch
5)   DLC Liquid Cooling   6)
Behlke Fast High Voltage Push-Pull Switch

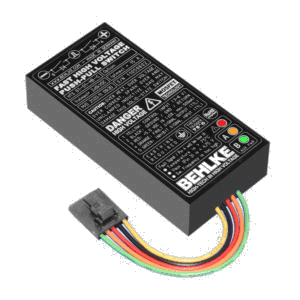

1)  HTS 61-01-HB-C, MOSFET push-pull switch. Compact series. Dimension  79 x 38 x 17 mm. Variable HV pulse width from 50 ns to infinite. 2 x 6 kV, 15 A. Rise and fall time < 8ns.
2)

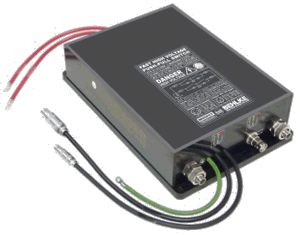

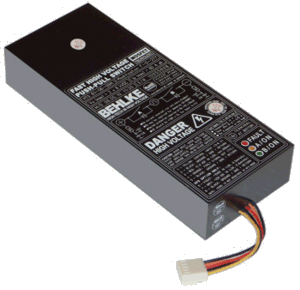

HTS 81-06-GSM, MOSFET push-pull switch in cost-efficient plastic housing. HV onnectors on bottom. Variable HV pulse width from 150 ns to infinite. 2 x 8 kV, 60 A. Rise & fall time < 7ns.

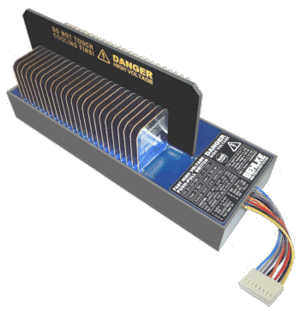

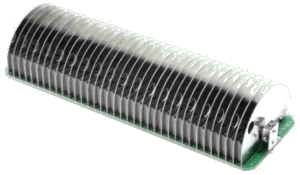

3)  HTS 201-03-GSM, MOSFET push-pull switch with
optional cooling fins (CF) and flame retardent housing according to UL94-V0 (option UL94).  2 x 20 kV, 30 A pk, rise and fall time < 10 ns
4)

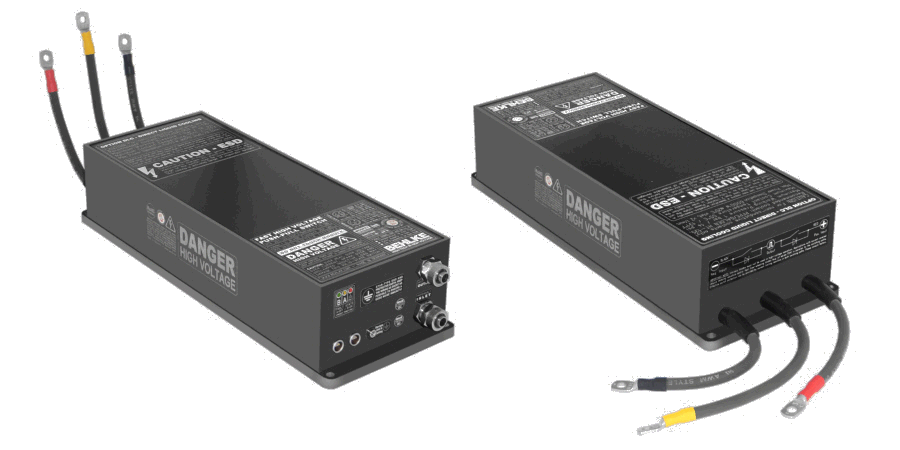

  HTS 301-03-GSM, MOSFET push-pull switch with the options FH (flange housing), DLC (direct liquid cooling), C-DR (driver cooling) and HFS (high frequency switching). 2 x 30 kV, 30 A
     Rise and fall time < 20 ns, repetition rate >100 kHz. Maximum power dissipation up to 6 kW with DLC cooling. Dimension 330x120x75 mm.
5)  HTS 1501-10-GSM, MOSFET push-pull switch with the options FH (flange housing) and DLC (direct liquid cooling). 2 x 150 kV, 100 A. Rise and fall time < 90 ns.

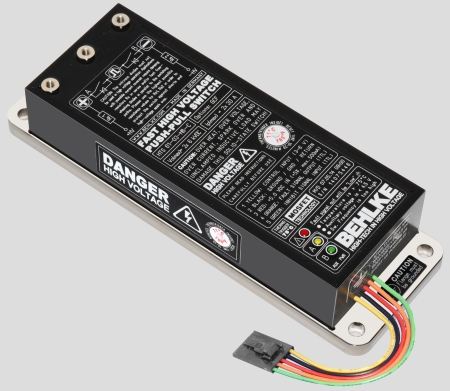

6)  HTS 61-03-HB-C,  MOSFET push-pull switch. Compact series, with option GCF (grounded cooling flange). Variable pulse width from 75 ns to infinite. 2 x 6 kV, 30 A. Rise & fall time < 6 ns.

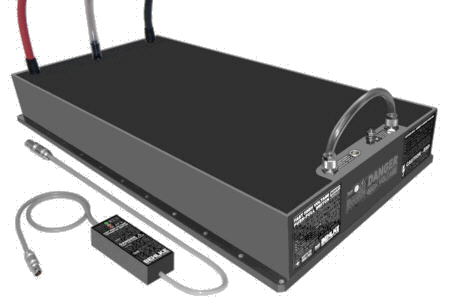

Note: Push-pull switches are available up to 150 kV / 200 A. The maximum power dissipation Pdmax can be increased up to 50 kW.

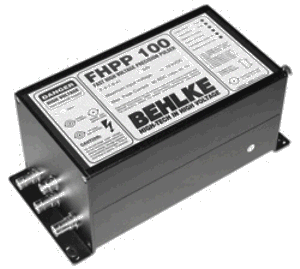

 Product Group D - HV pulsers & pockels cell drivers MORE
1) 2)                             N E W 3)                           N E W
 Behlke Fast High Voltage Pulser   Picture coming soon  Behlke Fast High Voltage Pulser
4)                        5)                        N E W 6)
Behlke Fast High Voltage Pulser   Behlke Fast High Voltage Q-Switch Driver Behlke Fast High Voltage Q-Switch Driver

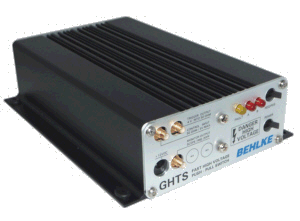

1)  GHTS 60 /100, laboratory square wave pulser for capacitive load. With CE certification. Up to 10 kV. Rise & fall time 10 ns, f(max) = 30 kHz. Manual polarity reversal. HV pulse monitor out.
2)  FBP 201-01, Fast high voltage bipolar and AC pulser. Pulser accepts positive and negative supply voltages without polarity reversal. Ideal for TOF applications. 20 kVAC / 15 A, other
      voltages and currents on request. Optional liquid cooling (ILC or DLC) for high frequency operation. With CE certification. HV pulse monitor output.

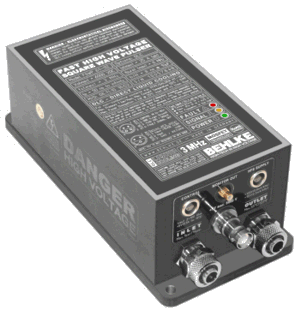

3)  FSWP 61-02, MOSFET push-pull pulser with DLC liquid cooling for high frequency operation.With pulse monitor output. 6 kVDC, 20A, tr/tf <8ns, fmax=3MHz
4)  HTS XXX-XXX with option PC. Every BEHLKE HTS switch can be configured as a pulser according to the customers requirements. Please consult BEHLKE for more details.

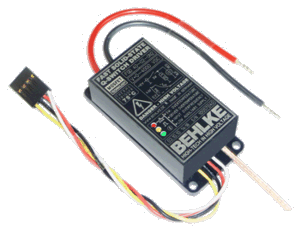

5)  FQD 50-02-C, MOSFET pockels cell driver, compact series. LxWxB = 64x30x18 mm (2.5x1.18x 0.7inch). On-mode configuration, 5 kV, 20 A pk, rise time < 5 ns

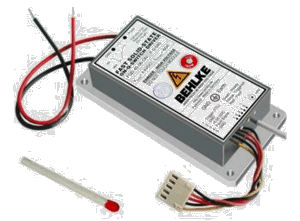

6)  FQD 40-06, MOSFET pockels cell driver, with optional cooling flange (GCF) for repetition rates up to 150 kHz. On-mode, 4 kV, 60 A pk, rise time < 5ns

 Product Group E- Fast recovery high voltage diodes, series FDA MORE
1) 2) 3)
Behlke Fast High Voltage Diode Behlke Fast High Voltage Diode Behlke Fast High Voltage Diode
4) 5) 6)
Behlke Fast High Voltage Diode Behlke Fast High Voltage Diode Behlke Fast High Voltage Diode

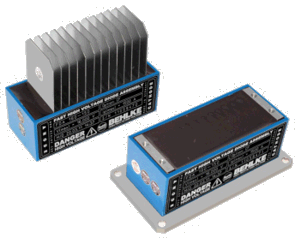

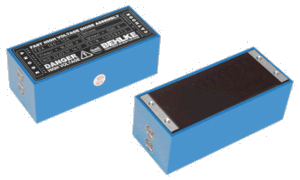

1)  FDA 160-150. Fast recovery diode 16 kV / 1500 A. Reverse recovery <85 ns @150A. Standard housing. The picture shows top and bottom side.
2)  FDA 160-150. Fast recovery diode 16 kV / 1500 A. Reverse recovery < 85 ns @ 150A. Top: With cooling fins (CF). Bottom: With Cu cooling flange (GCF).

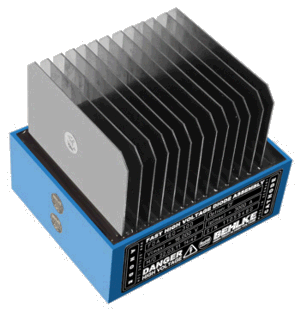

3)  FDA 160-300. Fast recovery diode 16 kV / 3000 A. Reverse recovery <85 ns @ 300A. Housing with optional copper cooling fins (option CF).

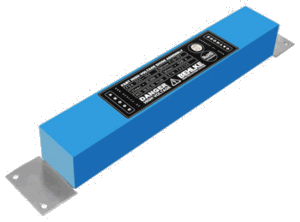

4)  FDA 350-150. Fast recovery diode 35 kV / 1500 A. Reverse recovery <85 ns @150A. Standard housing with customized high voltage connectors.

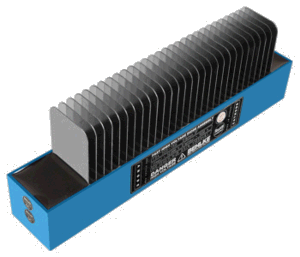

5)  FDA 320-150. Fast recovery diode 32 kV / 1500 A. Reverse recovery <85 ns @150A. With optional cooling fins (CF) for max. 400W power dissipation.

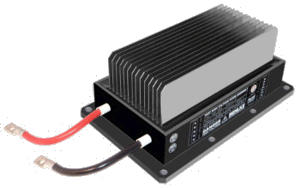

6)  FDA 160-800. Fast recovery diode 16 kV / 8000 A. Reverse recovery <85 ns @ 800A. Flange housing (FH) with cooling fins (CF) and pigtails (PT-HV).


 Examples of customized HV switches & HV pulsers

1) 2) 3)
Behlke Fast High Voltage OEM Pulser
4) 5) 6)


7) 8) 9)
Behlke Fast High Voltage OEM Pulser
1)    Customized HV pulser unit with remote controlled polarity change. Industrial TOF application. +/- 10 kV, 30 A (pk), rise and fall time <10 ns
2)    Customized thyristor switch with water cooling. Medical application with 55 kVDC isolation requirement. 24 kVDC, 12 kA pk, current rise time < 500 ns.
3)    Customized thyristor switch for seismological explorations in earth drill holes. 130 x 20 x 20mm. 6 kVDC, 1kA pk, current rise time < 500 ns.
4/5) Customized AC switch for high frequency high power applications. Designed for direct liquid cooling (DLC). Fig. 4: The plastic housing (PEEK), pressure and radiation prooff,according to the
        customer requirements..Fig. 5: The AC switch, made of 35x4 FET, 800V/60A each = 28 kVAC / 120A, Ron < 2.5 Ohm, rise time <15 ns.Fig. 5: The AC switch, made of 35x4 FET, 800V/60A
        each =  28 kVAC / 120A, Ron < 2.5 Ohm, rise time <15 ns.

6)    Customized MOSFET push-pull switch with mains water cooling in a very compact design. 5 kVDC, 25 A pk, fmax 300 kHz, rise and fall time < 8ns
7)    Customized pockels cell driver. 2 push-pull switches in full bridge configuration to generate a HV pulse width from 7ns to infinite. 8kV, 30 A pk, > 500 kHz

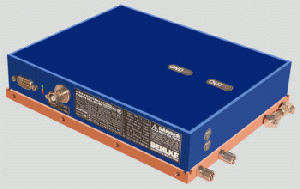

8)    Customized pockels cell driver for industrial lasers. Cu cooling flange with mains water cooling. UL94-V0 Push-pull switch, 5 kV, rise and fall time < 10ns, fmax=300kHz.
9)    Customized thyristor switch in a special housing for the direct replacement of a spark-gap in an existing system. With water cooling. 24 kV, 8 kA (pk).
